CÁMARA
Sensor de imagen 1/3'' Progressive Scan CMOS Not Starlight Sensor'
Lente Focal Length: 4.0mm
Aperture: 2.0
Field of View: 88.3°(Diagonal), 75.2°(Horizontal), 40.8°(Vertical)

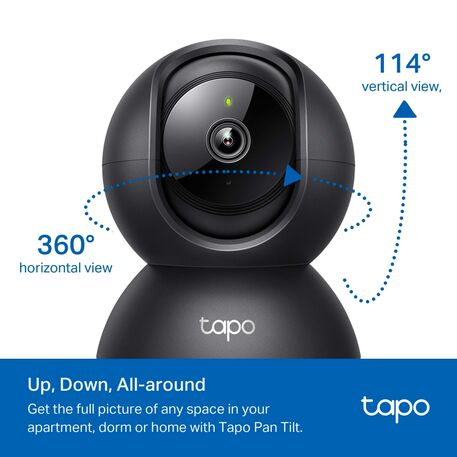

Rango de movimiento Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 70° (110.8° Tilt Coverage)
Vision nocturna 850 nm IR LED ( (40 ft / 12 m)
Iluminación /
Compatibilidad de Hub /
Interfaz y botón 1× RESET Button
1× MicroSD Card Slot (Up to 512 GB)
VIDEO & AUDIO
Resolución Máxima 1080P HD (1920 x 1080 px)
Cuadros por segundo Supports 15 fps by default, 30 fps maximum
Zoom Digital None
Compresión de Vídeo H.264
Vista en Vivo Yes
Mejora de la imagen 3D DNR
Entrada y Salida de Audio Built-in Microphone and Speaker
Comunicación de Audio Two-Way Audio with Noise Cancellation
Volumen de Sirena 93dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage MicroSD Card Slot on Camera (Up to 512 GB)
General Information about using MicroSD Cards >
Cloud Storage Tapo Care Cloud Storage Services (Subscription required)
DETECTION and NOTIFICATIONS
Sensor /
AI Detection Motion Detection
Person Detection
BabyCry Detection
Activity Zones Yes
*Only works with Motion Detection.
Output Notification System Notification
System Notification with Snapshot (Tapo Care Services)
System Notification with Clips (Tapo Care Services)
RED
Network Connectivity Connect via Wi-Fi
Wireless Connectivity IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
RTSP Yes
ONVIF Yes
SEGURIDAD
Security On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK
PODER
Power Source 9V DC Power Adapter
Input Voltage Adapter Input: 100-240 V, 50/60 Hz
Output Voltage Adapter Output: 9 V, 0.6 A
GENERAL
Certificacion /
Mounting Options Tabletop
Ceiling-Mounted
Temperatura de funcionamiento 0?~40?
Storage Temperature -20?~60?
Humedad de funcionamiento 10%~90% RH, Non-condensing
Storage Humidity 5%~90% RH, Non-condensing
Contenido del Paquete Tapo C201 Camera
Power Adapter
Quick Start Guide
Mounting Screws
Mounting Template
Camera Base
Mounting Anchors
