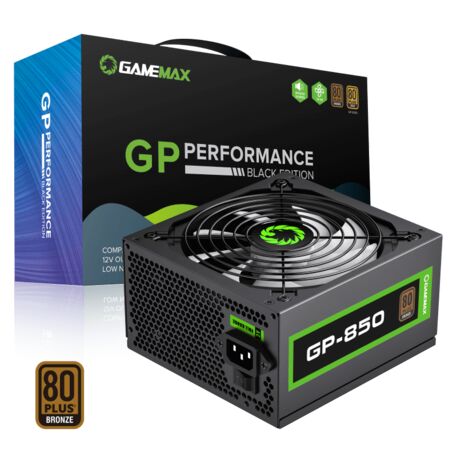

Fuentes Atx Gamemax 850W 80 Plus Bronce

Código: 61860 | Marca: Gamemax

Consultar

15% OFF abonando en efectivo, -10% transferencia, - 8% débito

GameMax 80 plus Bronze Certified GP-850 None-Modular PSU features a cut-edge DC-to-DC design, Provides high-performance business and gaming build, and experiences gaming Bliss with the GP-850 power supply!
•Engineered with high-end components, Elegant black PSU casing with black flat cable.
•DC-to-DC technology ensures optimal power efficiency and stable output across all components.
•ATX12V 80 PLUS Bronze Certified power supply ensures high energy efficiency and minimizes heat generation.
•Extended 12V Rail for high compatibility and extremely high current output
•Longer 12V8pin(4+4) pins up to 650mm is easy for high-end tower chassis installation
•14cm silent black fan provides silent operation and efficient cooling system with smart thermal sensor.
•Features six essential safety mechanisms providing system stability with OVP/UVP/ OPP/OCP/OTP/SCP.
•Safety Certified by TUV Lab with CE strict standards.

C
Output
Max +3.3V +5V +12V -12V +5VSB
20A 20A 70A 0.5A 2.5A
850W
Connectors

20+4 Pin Main Connectors:

1
4+4 Pin 12V Connectors:

1
SATA Connectors:

7
4-Pin Molex Connectors:

3
6+2 Pin PCI-e Connectors:

4
Detailed Specifications

Dimensions: 158mm x 85mm x 150mm (W x H x D)
Input Voltage: 100-240 VAC
Input Current: 15-5A
Input Frequency Range: 50-60Hz
PFC: Active PFC (>.99)
Power Good Signal: 100-150 ms
Hold Up Time: >10ms
Efficiency: > 85% (87% max)
MTBF: > 100,000 Hours
Protection: OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP
Power: 850W
Operation Temperature: 0-40C
Safety: CE / FCC / CB
Cooling: 140mm Ultra Silent Fan
Noise: <25dBa
80 Plus Certified: Yes - 80 Plus Bronze
General Specifications

Manufacturer Part Number: GP-850
EAN Number: 6931858720083
Has Mains Plug: No
Colour: Black
What's In The Box: Power Supply
Screws
Manual
2 x Cable Ties
Unit (Product) Dimensions (mm): 150mm x 85mm x 140mm (W x H x D)
Packaging Dimensions (mm): 300mm x 180mm x 115mm (W x H x D)
Net Weight (KGs): 1.6 KGs
