CARACTERÍSTICAS DE HARDWARE
LED Status
Dimensiones (An x Pr x Al) 57.8 × 18 × 173.4 mm (2.28 × 0.71 × 6.83 in)

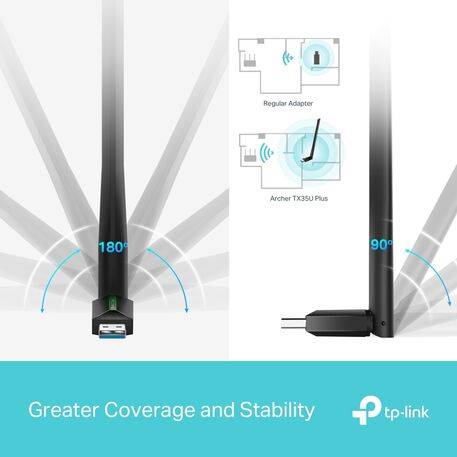

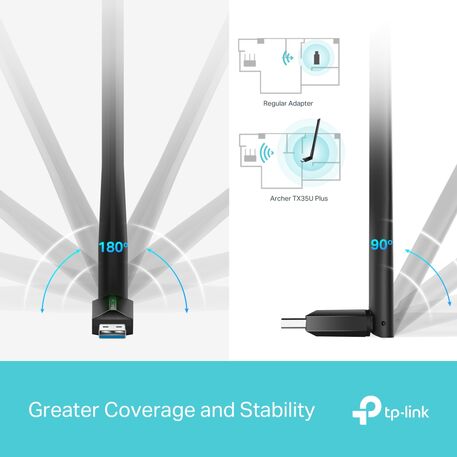

Antena 2× High-Gain Dual-Band Antennas
CARACTERÍSTICAS INALÁMBRICAS
Estándares inalámbricos IEEE 802.11a/b/g/n/ac/ax
Tasa de señal 5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Sensibilidad de recepción 5 GHz:
11ax HE80 MCS0: -88 dBm
11ax HE80 MCS11: -60 dBm
11a 54Mbps: -75 dBm
11ac VHT80 MCS0: -87 dBm
11ac VHT80 MCS9: -62 dBm
2.4 GHz:
11ax HE40 MCS0: -92 dBm
11ax HE40 MCS11: -63 dBm
11g 54Mbps: -79 dBm
11n HT40 MCS9: -68 dBm
Modos inalámbricos Client Mode
Hotspot Mode
Seguridad inalámbrica WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
Poder de transmision 5 GHz: 19dBm(FCC)/17dBm(CE)(EIRP)
2.4 GHz: 18dBm(FCC)/18dBm(CE)(EIRP)
OTROS
Certificación FCC, CE, RoHS

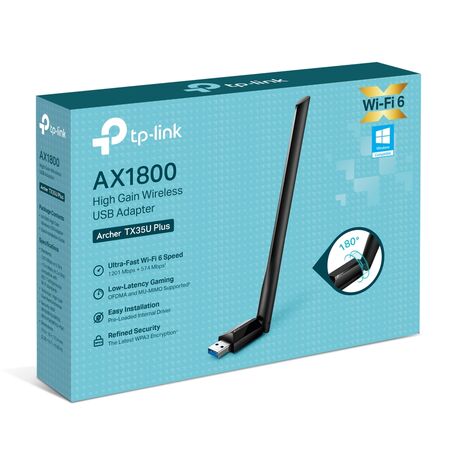

contenidos del paquete AX1800 High Gain Wireless USB Adapter
Archer TX35U Plus
Quick Installation Guide
Requisitos del sistema Supported operating systems include Windows 10, 11
Ambiente Operating Temperature: 0?~40? (32? ~104?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Obtenga productos, eventos y servicios para su región.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) AP limitations, including rated performance, location, connection quality, and AP condition.
‡Use of Wi-Fi 6 (802.11 ax), and features including OFDMA, MU-MIMO, and 1024-QAM require APs to also support the corresponding features.
§Functionality of the adapter may be restricted on some operating systems and platforms. Please try to update the device's driver for feature compatibility.
?Use of WPA3 requires APs to also support the corresponding feature.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
