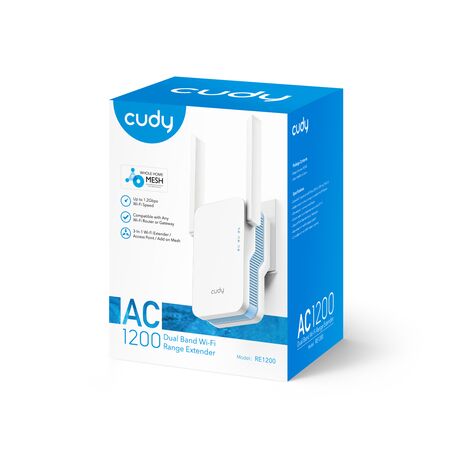

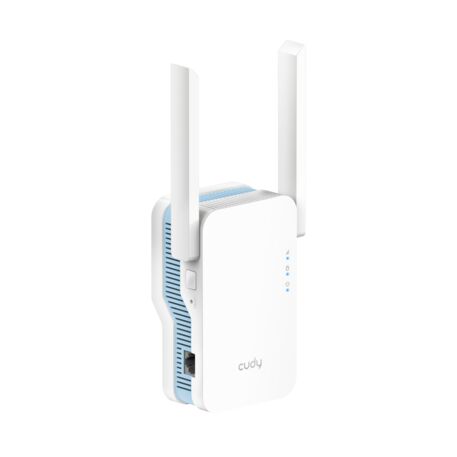

Versión del modelo RE1200 1.0
CPU CPU Details 580 MHZ, MIPS24KEC
Memory/Storage Flash/ROM 8 MB (64 Mbit ) NOR
DDR/RAM 64 MB (512 Mbit) DDR2
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Fixed
FEM or PA/LNA
5 GHz: 2× Internal
2.4 GHz: 2× Internal
Range Performance Max: 150 m (492 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Interfaces 10/100 Mbps RJ45 Ports 1
LED
Signal Strength
WPS
Power
Physical Buttons
WPS Button
Reset Button
Power Input AC Plug
Power Input Note EU, US, UK plug are available on corresponding region versions
Power Power Methods AC
AC 100V ~ 240V
Reliability Environment
Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Install in a Daisy Chain Recommend to install less than 3 repeaters in a wireless chain.
Installation Plug-In-Socket
Dimension 129.6×80×48.6 mm
5.1×3.15×1.91 inches
Product Weight UK: 210 g (7.41 oz.),US / EU: 205 g (7.23 oz.)
Package Content
RE1200
Installation Guide
Ordering Information Retail Package Weight UK: 356 g (12.56 oz.),US / EU: 369 g (13.02 oz.)
Retail Package Dimension 161×120×96 mm
6.34×4.72×3.78 inches
Units per Carton 30
Carton Net Weight UK: 10.7 kg (23.59 lbs),US / EU: 11.1 kg (24.47 lbs)
Carton Gross Weight UK: 11.1 kg (24.47 lbs),US / EU: 12.0 kg (26.46 lbs)
Carton Dimension 50.4×37.7×34.1 cm
19.84×14.84×13.43 inches
