Versión del modelo GS105U 1.0
Interfaces Gigabit RJ45 Ports 5
LED
Power
Link/ACT of Each Ethernet Port
Power Interfaces USB-C Port
Performance Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 140 meters at Gigabit
MAC Address Table 2048
Max Switching Capacity 10 Gbps
Max Forwarding Rate 7.44 Mpps
Jumbo Frame 15 KB
Packet Buffer 3 Mbit
Power Basic Power Saving True
Power Methods USB-C
Power Input 5V?
Max Power Consumption 2W
Idle Power Consumption 1.4W
Switching 802.3 Protocols
802.3x Flow Control
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T
Reliability EMS IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: 2kV
Environment Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical Dimension 88×52.5×24 mm
3.46×2.07×0.94 inches
Product Weight 53 g (1.87 oz.)
Casing Material Plastic
Installation
Desktop
Wall-mount

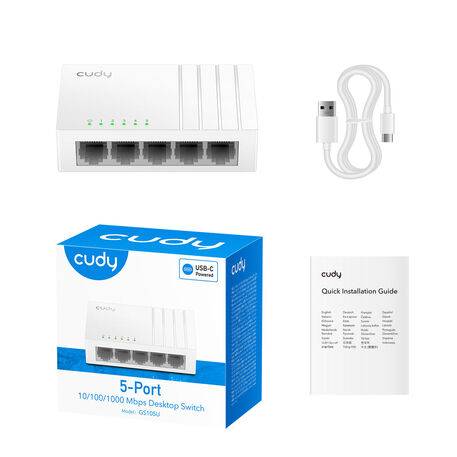

Package Content
GS105U
USB-A to USB-C Power Cable
Installation Guide
Ordering Information Retail Package Dimension 92×89×48 mm
3.62×3.5×1.89 inches
Retail Package Weight EU: 124 g (4.37 oz.)
Units per Carton 100
Carton Net Weight EU: 12.4 kg (27.34 lbs)
Carton Gross Weight EU: 13.2 kg (29.1 lbs)
Carton Dimension 48.3×26.7×38 cm
19.02×10.51×14.96 inches
