Interfaz • 24× 10/100/1000 Mbps RJ45 Ports
• Auto-Negotiation/Auto MDI/MDIX
Cantidad de Ventiladores Fanless
Instalación • Desktop
• Rackmountable
Bloqueo de Seguridad Físico v
Fuente de Alimentación 100-240 V~50/60 Hz
Dimensiones 11.6 × 5.5 × 1.7 in (294× 140 × 44 mm)
Surge Protection ±6kV
RENDIMIENTO
Memoria del Buffer de Paquete 4 Mbit
Jumbo Frame 15 KB
Capacidad de Conmutación 48 Gbps
Tasa de Reenvío de Paquetes 35.7 Mpps
Tabla de Direcciones MAC 8K
CARACTERÍSTICAS DE SOFTWARE
Calidad de Servicio • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?
Características L2 • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
Multicast L2 • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Método de Transmisión Store-And-Forward
GESTIÓN
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Gestión Centralizada • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Acceso a la nube Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Aprovisionamiento sin contacto Yes. Requires the use of Omada Cloud-Based Controller
Funciones de gestión • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
Otros
Certificaciones FCC, CE, RoHS

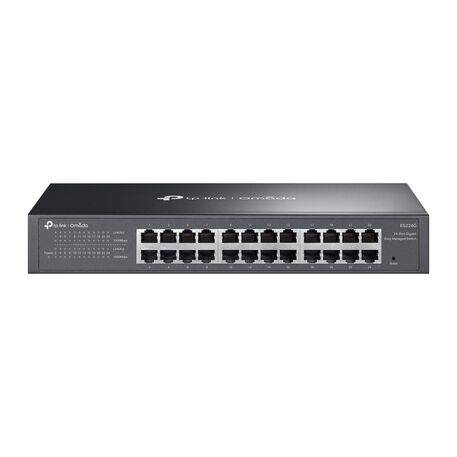

Contenido del Paquete • ES224G
• Power Cord
• Rubber Feet
• Mounting Brackets
• Screws
• Installation Guide
Factores Ambientales • Operating Temperature: -5?~50? (23?~122?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
