Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Medios de Red 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Cantidad de Ventiladores 1
Cerradura de Seguridad Física No
Fuente de Alimentación 100-240VAC, 50/60Hz
Puertos PoE+ (RJ45) Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
Power Supply: 126W
Sitio de Banda Ancha 16Gbps
Tabla de Dirección Mac 4K
Tamaño de Búfer 1.5Mbits
Dimensiones (W X D X H) 11.6*7.1*1.7 in. (294*180*44 mm)
Montaje Rack Mountable
Consumo Máximo de energía 9.89W(220V/50Hz. no PD connected)
140.67W(110V/60Hz. with 126W PD connected)
Disipación Máxima de Calor 33.74BTU/h(no PD connected)
492.56BTU/h(with 126W PD connected)
CARACTERÍSTICAS DE SOFTWARE
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS

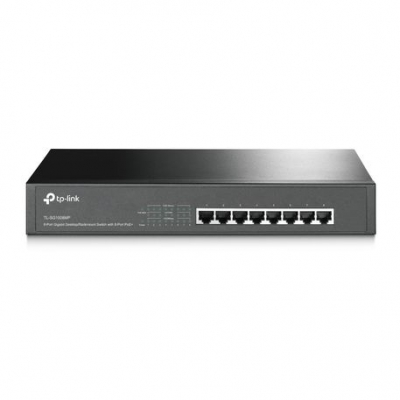

Package Contents TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
