Versión del modelo FS108D 4.0
Interfaces 10/100 Mbps RJ45 Ports 8
LED
Power
Link/ACT of Each Ethernet Port
Performance Max Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
MAC Address Table 2048
Max Switching Capacity 1.6 Gbps
Max Forwarding Rate 1.1904 Mpps
Packet Buffer 570 Kbit
Power Power Input Type DC Jack
Basic Power Saving
Power Methods DC
Power Input 5V?0.55A
Power Adapter in the Box Input: 100-240V~, 50/60Hz
Output: 5V?0.55A
Max Power Consumption 0.75W
Idle Power Consumption 0.4W
Switching 802.3 Protocols
802.3i 10BASE-T
802.3u 100BASE-TX
Reliability Environment Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical Dimension 138×61.5×24 mm
5.43×2.42×0.94 inches
Product Weight 78.4 g (2.77 oz.)
Casing Material Plastic
Installation
Desktop
Wall-mount

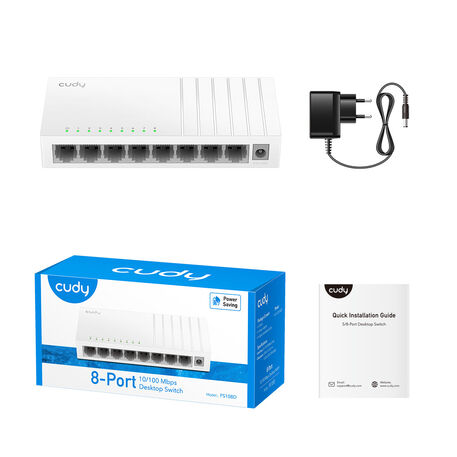

Package Content
FS108D
Power Adapter
Installation Guide
Ordering Information Retail Package Dimension
EU/US:
151×75×63 mm
5.94×2.95×2.48 inches
UK:
151×75×81 mm
5.94×2.95×3.19 inches
Retail Package Weight EU: 194.8 g (6.87 oz.)
Units per Carton
EU/US: 50
UK: 50
Carton Net Weight EU: 9.7 kg (21.38 lbs)
Carton Gross Weight EU: 10.4 kg (22.93 lbs)
Carton Dimension
EU/US: 33×31.7×39.5 cm
12.99×12.48×15.55 inches
UK: 43×32.5×40 cm
16.93×12.8×15.75 inches
